Downloading AOI related CSV files filtered by the item quality grade


As for the Raw Gazes CSV files, you can download AOI related CSV file or fixations CSV filtered by the item quality grade. This means, that you can download the data only for items with a certain quality, i.e. 5 (Very good).

NOTE: filtering is based on the items' grades, not the participants'.

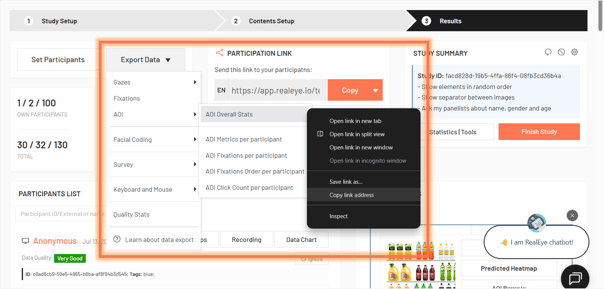

To download filtered data, you need to click "Export Data" on your study dashboard, choose the AOI Overall Stats CSV file, right-click on it and copy the link:

Paste the link in a new tab (without opening it yet). Add "/?testerQualityGradeItemMin=X" (where X is the quality grade from 1 to 6), so i.e. for a minimum very good (5) grades:

https://www.realeye.io/dashboard/report/study-aoi-overall-stats/a7cd87d5-9a32-4127-b3e1-16bb01646813

is now

https://www.realeye.io/dashboard/report/study-aoi-overall-stats/a7cd87d5-9a32-4127-b3e1-16bb01646813/?testerQualityGradeItemMin=5

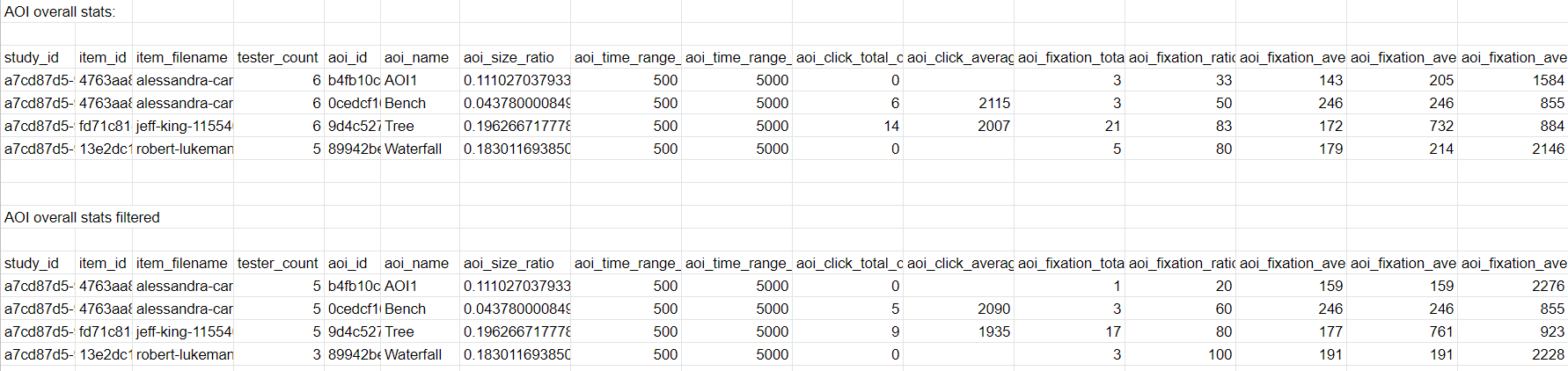

As a result, you'll receive a file with data collected for items with grades "very good" or "perfect" (because we choose grade 5; remember that the participants' grades can be lower as the filtering is done by item grade).

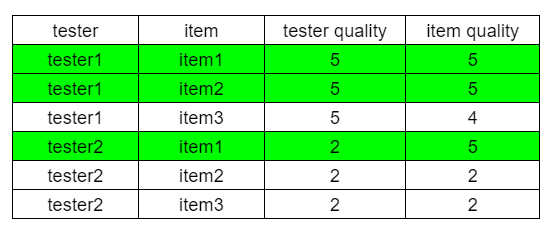

In the CSV file may be a column called tester_quality_grade, not item_quality_grade. In case, when a tester with low quality, for one of the items had a very good quality, this item will be included in the CSV. For example, if testerQualityGradeItemMin=5, then in the CSV results for items marked green will be included:

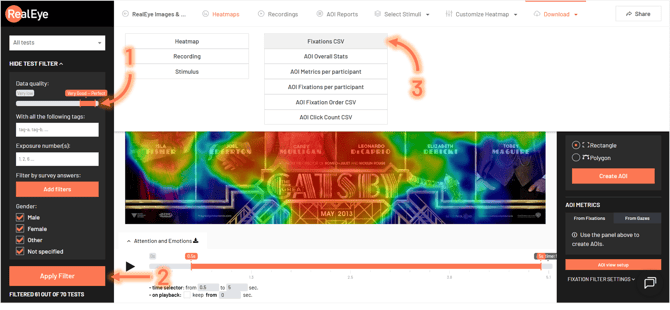

You can also download this filtered CSV for one item using the quality filter on the heatmap dashboard (set bottom filter, click "Apply filters", go to "Download" tab in the menu on the top and download the AOI Overall Stats CSV file).
